Ultra-low Vibration Mechanical Optical Shutter

Low Vibration Mechanical Optical Shutter

This industrial-grade mechanical optical shutter features an impact-free structure for low-vibration operation. We provide both standard models in multiple specifications and end-to-end custom engineering services, making it ideal for vibration-sensitive industrial optical applications.

Building on our core optical shutter technology platform, we address the high-reliability requirements of industrial scenarios. We have developed independent innovations and a comprehensive product lineup across four key technology areas: power-off fail-safe protection, optical performance optimization, cleanroom compatibility, and high-speed bidirectional shutter response, building out multi-faceted technical capabilities and complete solution offerings.

The SA series optical shutters cover multiple clear aperture sizes, and all models support custom development on demand:

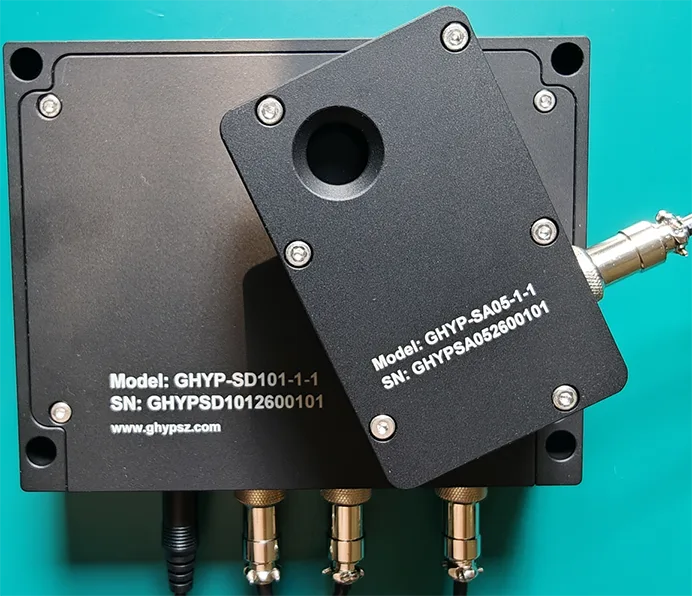

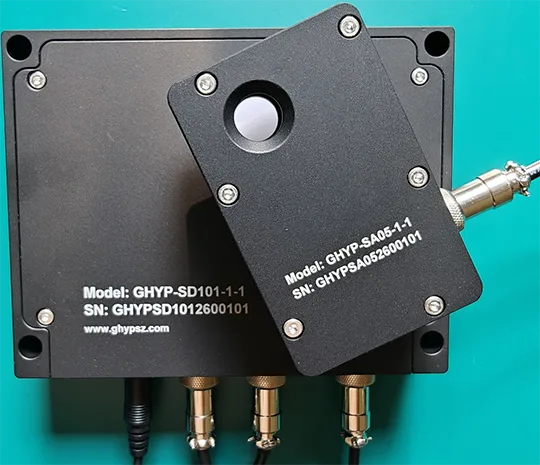

SA05-1: 1/2 inch clear aperture
SA10-1: 1 inch clear aperture
SA20-1: 2 inch clear aperture

Product Features

Outstanding Core Performance
The impact-free design enables ultra-low vibration operation. The SA05-1 model features a response time of (lab typical)≤10ms and a cycle life of over (lab typical)100 million operations.
Stable and Reliable Function
Bistable position locking is supported for both open and closed states. The shutter settles with minimal jitter after positioning and runs with low noise.
Flexible and Wide Compatibility
Multiple clear aperture options are available. The shutter is compatible with TTL level control signals and adaptable to various industrial control systems.
Convenient System Integration
Both power supply specifications and mounting methods can be customized. The product supports tailored development and can be easily embedded into various optical equipment.

Main Technical Specifications

Parameter Item	Specification
Clear Aperture	12.7mm (1/2″) / 25.4mm (1″) / 50.8mm (2″)
Response Time	Closing response time of SA05-1 (100%→0% exposure) ≤10ms (lab typical)
Input Signal	TTL level input (DC 5V~24V, High = shutter open, Low = shutter close)
Output Signal	Status feedback: High = open status, Low = closed status
Operating Frequency	DC ~ 25Hz
Operating Mode	Normally Closed
Cycle Life	> 100 million cycles (lab typical)
Light-shielding Blade	Black anodized light-shielding blade
Power Supply	DC 24V by default (customizable)
Installation Method	Bracket mounting, optical platform mounting
Operating Temperature	10℃ ~ 40℃

Customization Service

Both the mechanical optical shutter body and its matched driver can be customized. We can adjust the design of clear aperture, mounting interface, electrical interface, housing package and other details according to customer requirements, to match the working conditions and integration needs of specific projects.
